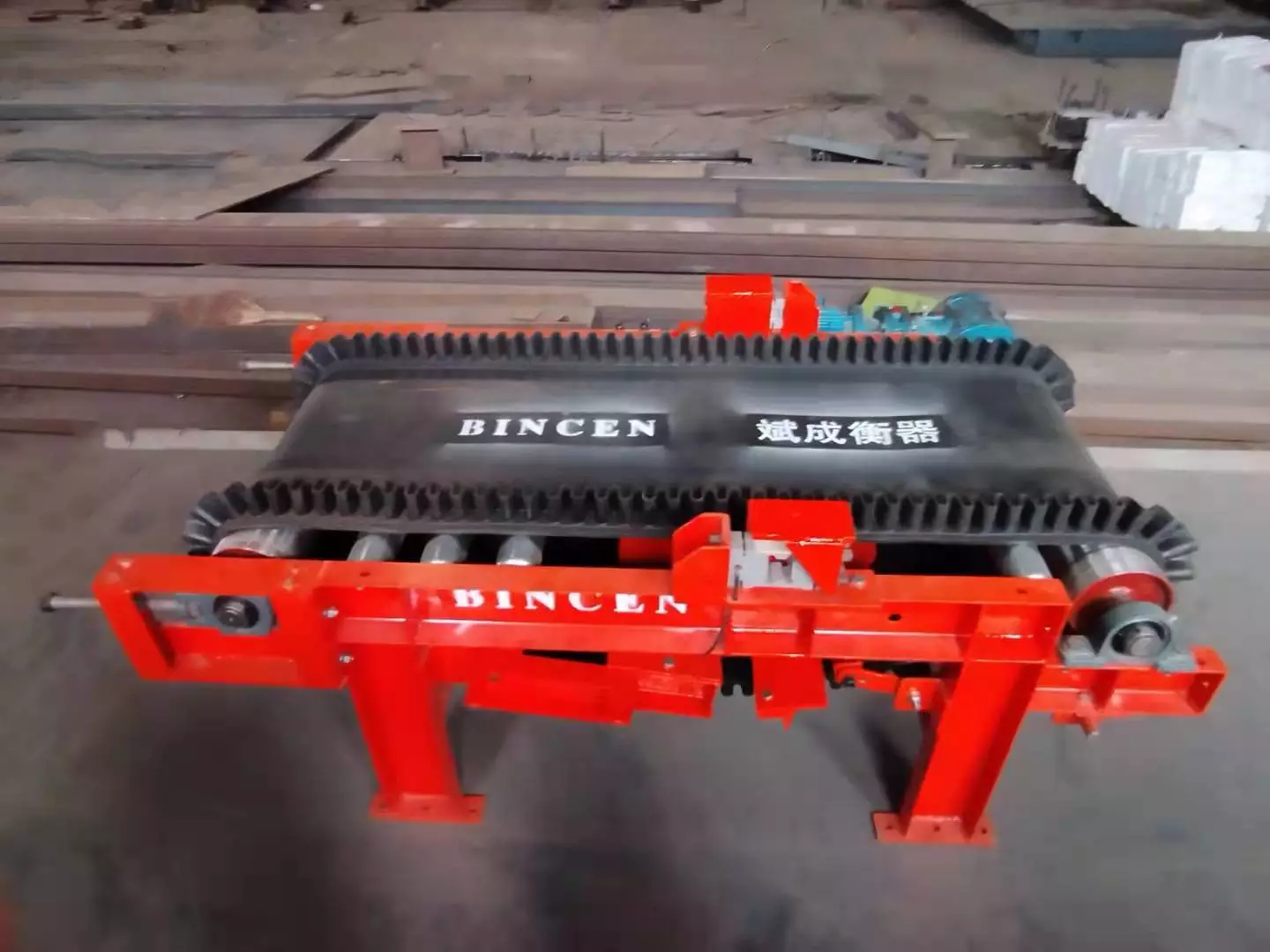

Speed Regulating and Batching Belt Scale

The speed regulating and batching belt scale is one of the belt scales provided by BINCEN which adopts a dynamic metering method and computer frequency conversion control, with an automatic belt tensioning device, deviation alarm protection, and an on-site control switch. It has the advantages of stable operation and high reliability, high measurement accuracy, and can work normally in harsh environments. It is suitable for batching and metering of bulk materials in industries such as building materials, metallurgy, chemical industry, and grain, and is capable of achieving automation control An ideal measuring equipment for stable product quality.

What Is Speed Regulating and Batching Belt Scale?

Configuration Introduction

  • 1 scale frame
  • 1 0.5m~1.2m wide skirt annular conveyor belt
  • 1 reducer and motor
  • 1 set of load cell
  • 1-speed sensor
  • 1 special instrument for batching belt scale
  • 1 control box/cabinet.

Note:

The computer can be configured, the flow curve can be displayed, and batching data reports (shift, daily, monthly, and annual reports) can be queried and printed.

In addition:

For materials with good fluidity and moderate humidity, no pre-feeding device is set when the belt conveyor scale is used; Disk feeder and electromagnetic vibration feeder can be selected for granular materials with viscosity and small amount of water; For dry fine powder materials, screw feeder, sealed impeller feeder and flow control valve can be selected.

Selection of belt scale controller:

The controller of the speed regulating and batching belt scale is generally divided into three modes: stand-alone controller, unit controller, and PLC controller. Chinese famous brands or world-famous brands can be selected as required.

Selection of feed hopper:

There are about 4 kinds of feed hoppers: ordinary feed hopper, vibration hopper with bin wall vibrator, diversion hopper with pre-feeder, and extended diversion hopper without pre-feeder.

  • The common feed hopper is suitable for free-flowing materials, such as blocky, granular, and powdery materials.
  • The vibrating hopper with silo wall vibrator is mainly suitable for some sticky and wet materials with poor discharge.
  • The diversion hopper with pre-feeder is mainly suitable for fluidizing pouring materials.
  • The long diversion hopper without a feeder is mainly used for fluidized pouring materials.

Features of Speed Regulating and Batching Belt Scale

  • Reasonable structure and high strength.
  • Low noise, low vibration, dust resistance, long service life, and high reliability.
  • Installation, debugging, and maintenance are extremely convenient.
  • Better linearity and repeatability.
  • Accurate and reliable speed measurement signals.
  • Unique belt anti-deviation device, which can freely adjust the tension.
  • Can control the feeding amount and sealing material for scale calibration and zero calibration.

Function of Speed Regulating and Batching Belt Scale

The speed regulating and batching belt scale collects signals from the weighing sensor and motor speed (frequency converter pulse signal or drum speed signal), calculates the instantaneous flow rate, compares it with the given flow rate, performs PID adjustment calculation, controls the motor speed, and achieves the goal of continuous batching with constant flow rate.

The speed regulating and batching belt scale is suitable for various forms of dynamic automatic batching. Each belt conveyor is equipped with a belt scale to achieve automatic batching such as constant flow rate and proportional control, improve production efficiency, save energy, and improve product quality. Installing two or more weighing bridges on the belt conveyor can achieve continuous dynamic batching measurement or intermittent dynamic batching of various materials. This reduces equipment investment and improves the stability and reliability of the batching system.

Sales to overseas cases

Specification of Speed Regulating and Batching Belt Scale

Measuring and batching accuracy of electronic belt weigher±0.5、±1%
Applicable occasionsSpeed regulating belt scaleGenerally, the user determines the belt width of the quantitative belt weight according to the maximum batching material volume (m3/h) or flow (t/h, kg/h). There are 650 and 800 belt widths commonly used.
Batching belt scaleIt can be used as continuous automatic quantitative feeding and batching equipment for granular and small materials in cement plants
Operation modeConstant speed belt weigher, hauling belt weigher, double speed belt weigher.
RangeCustomers are required to provide average traffic, which can refer to 60% – 65% of the traffic range
Belt widthGenerally, the user determines the belt width of the quantitative belt weigher according to the maximum batching material volume (m3/h) or flow (t/h, kg/h). There are 650 and 800 belt widths commonly used.
Belt speed0.05-0.5m/s
BeltSpecial ring belt
SensorSpeed sensor, load cell

How to Install the Product

  1. Our modular design and pre-integrated systems eliminate the need for heavy machinery during installation, saving you time and money.
  2. We offer comprehensive technical support, including installation guidance and after-sales service. Please note that on-site service is not available in your area, but we provide detailed video tutorials and remote assistance for installation.

Related Services

  • Elevant Certification: CE.
  • Services Available: Customized, ODM and OEM.
  • We stand behind our products. If any accessories are damaged during the warranty period, we’ll replace them at no charge.

Why Choose Us?

Advantage 1: BINCEN specializes in manufacturing electronic scales, ingredient controllers, measuring instruments, and complete automation systems. Our products find extensive applications in supporting construction machinery manufacturers, with our weighing and batching controllers boasting precise algorithms and consistent performance. We adhere to the good tradition of Seiko and meticulous work, strictly demand the quality of products, and win customers with stable and reliable product quality.

Advantage 2: We supply cutting-edge industrial automation control and testing equipment, industrial weighing systems, and sensor instruments to numerous renowned large and medium-sized industrial enterprises and aerospace industry entities across China. Our technology and products are esteemed for their reliability and credibility.

Advantage 3: Our team of seasoned engineers offers comprehensive sales support, including expert guidance throughout the sales process, customized solution design, assistance with product selection, installation, and debugging, as well as ongoing maintenance services post-purchase.

FAQ

A1: 1 set.

A2:

  1. Reach purchase intention after communication;
  2. Signing the contract;
  3. Pay deposit;
  4. Pay the balance after completion of production according to order;
  5. Delivery arrangements.

A3: Within 24 hours.

A4: Customers are welcome to visit us.

A5: Jiangjin, Chongqing, China.
