Flat Panel Dynamic Weighing System

  • Power supply voltage: 10V (DC/AV)
  • Maximum single axis or axle group load: Max=40t
  • Minimum single axis or axle group load: Min=1000kg
  • Accuracy level of total vehicle weight: Level 5
  • Components: Load cells, weighing instrument
  • Function: Measures tire forces, vehicle passing time
  • Calculation: Calculates wheel/axle/vehicle weight, speed, wheelbase

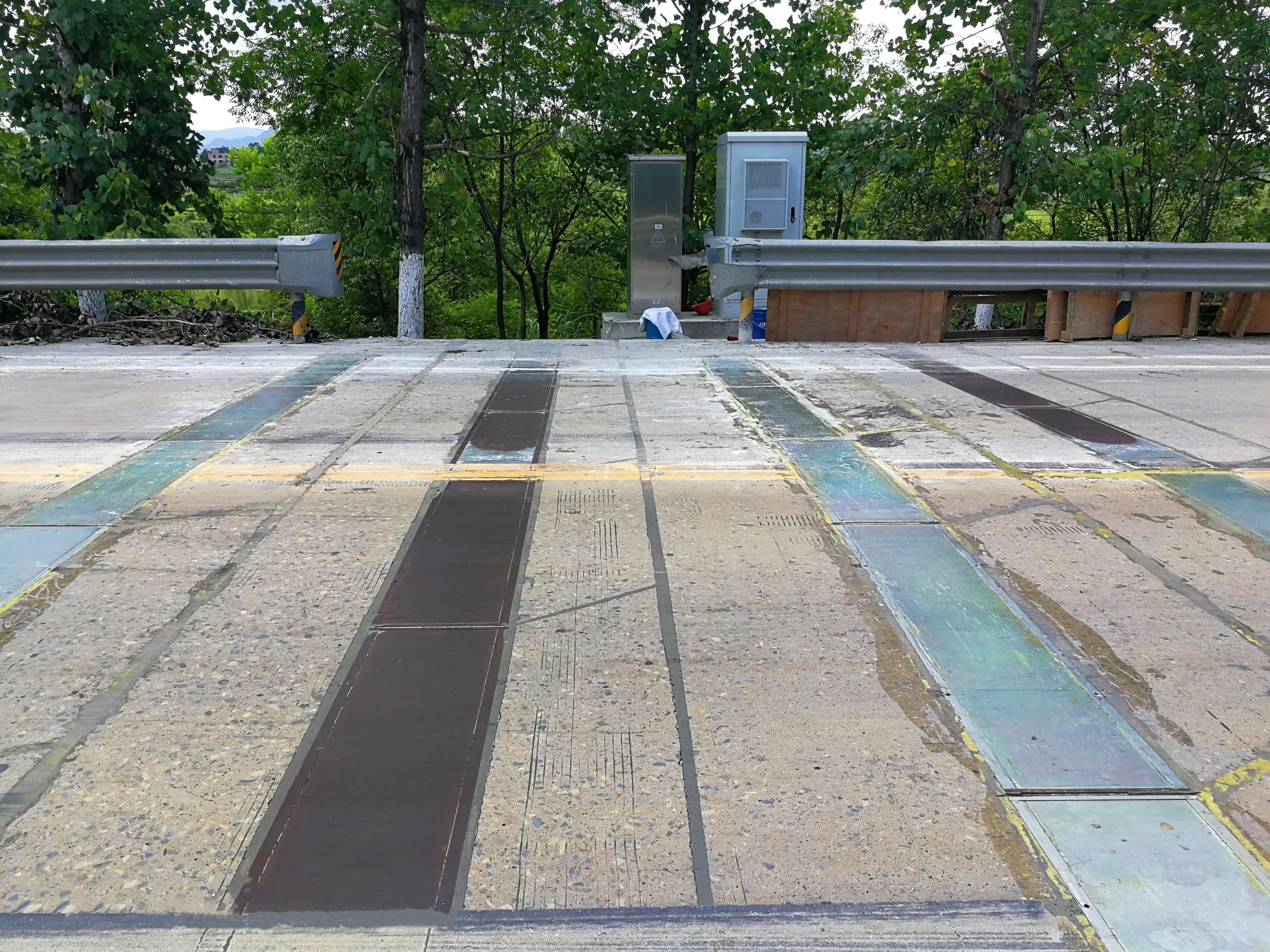

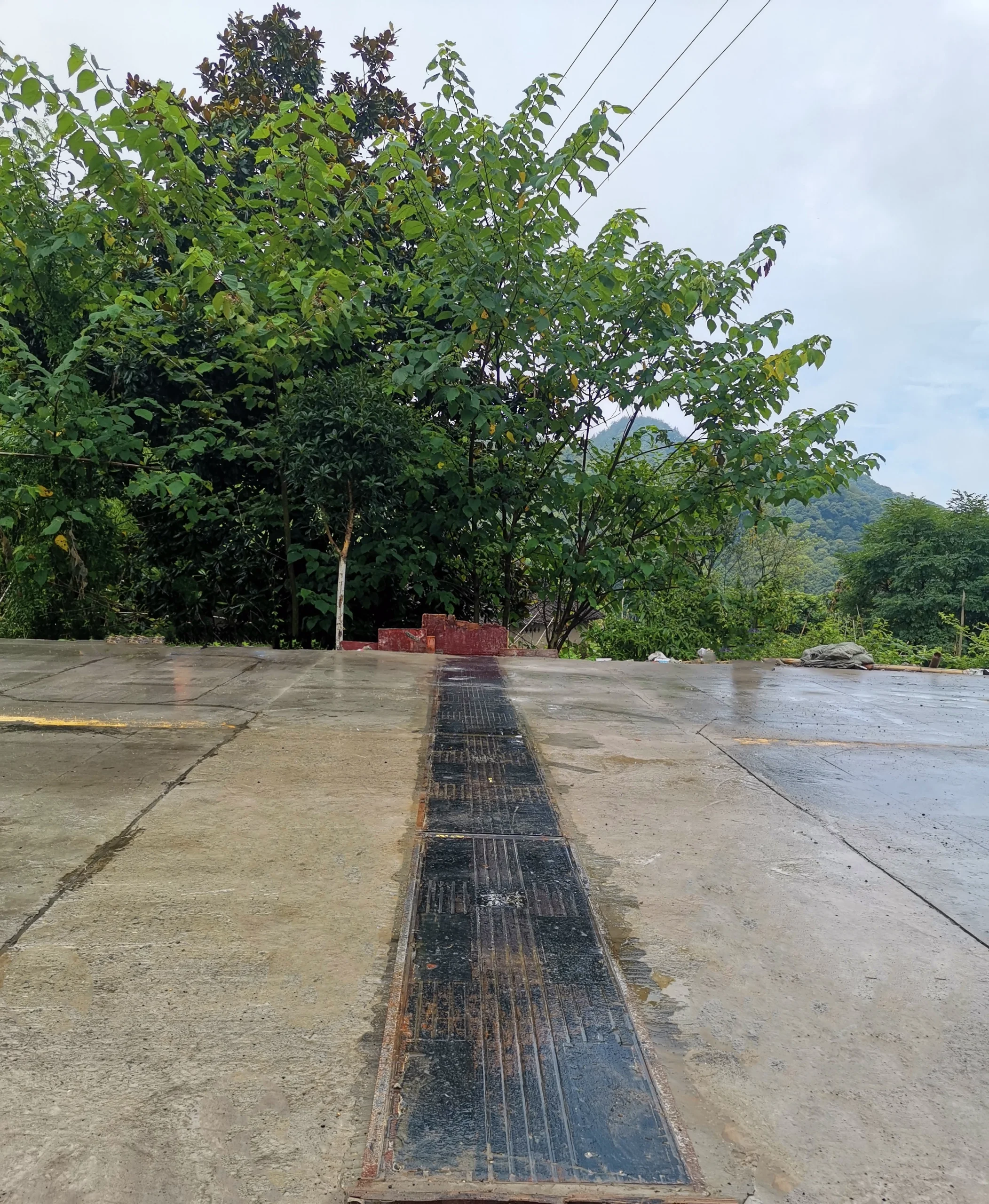

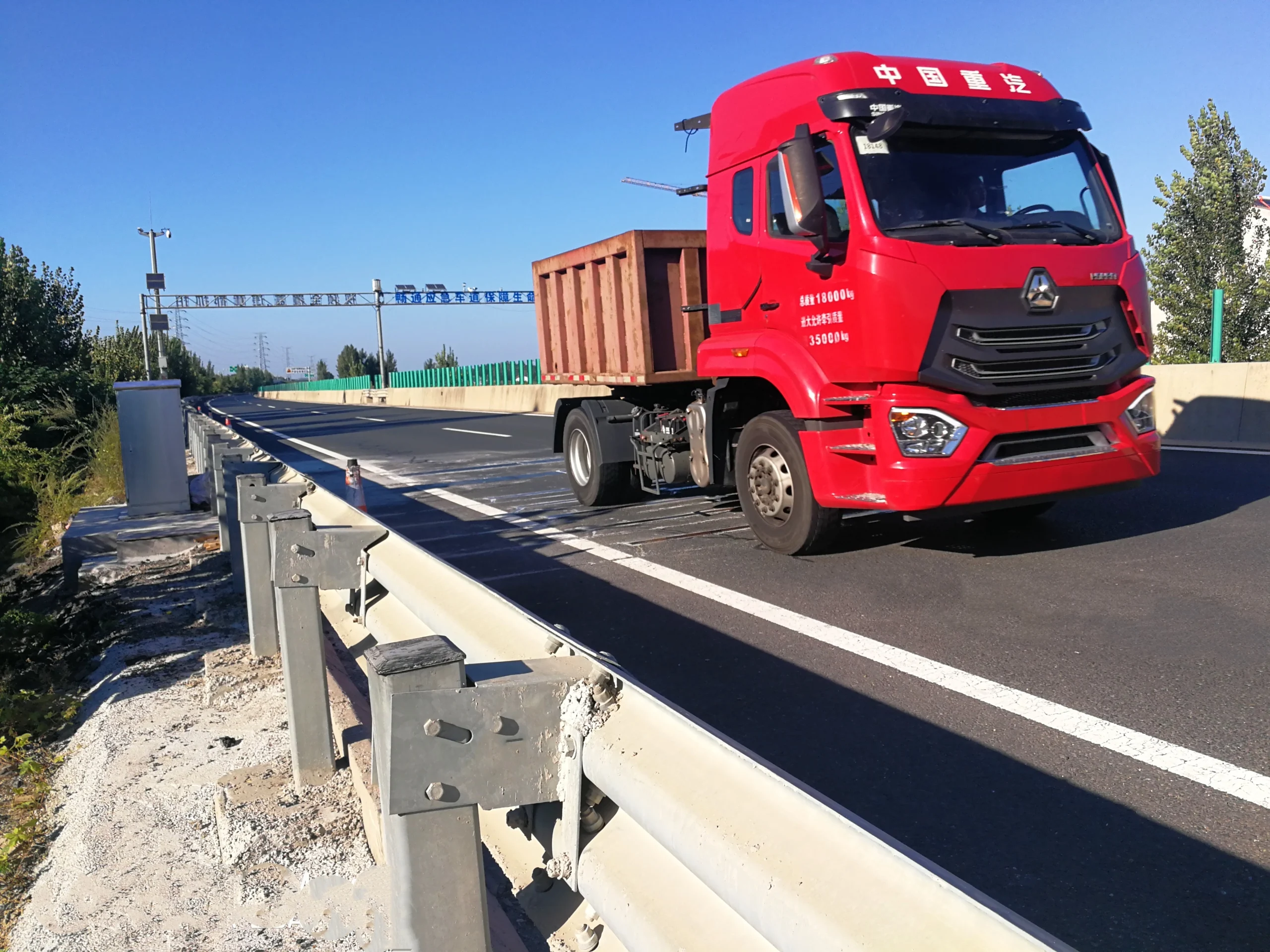

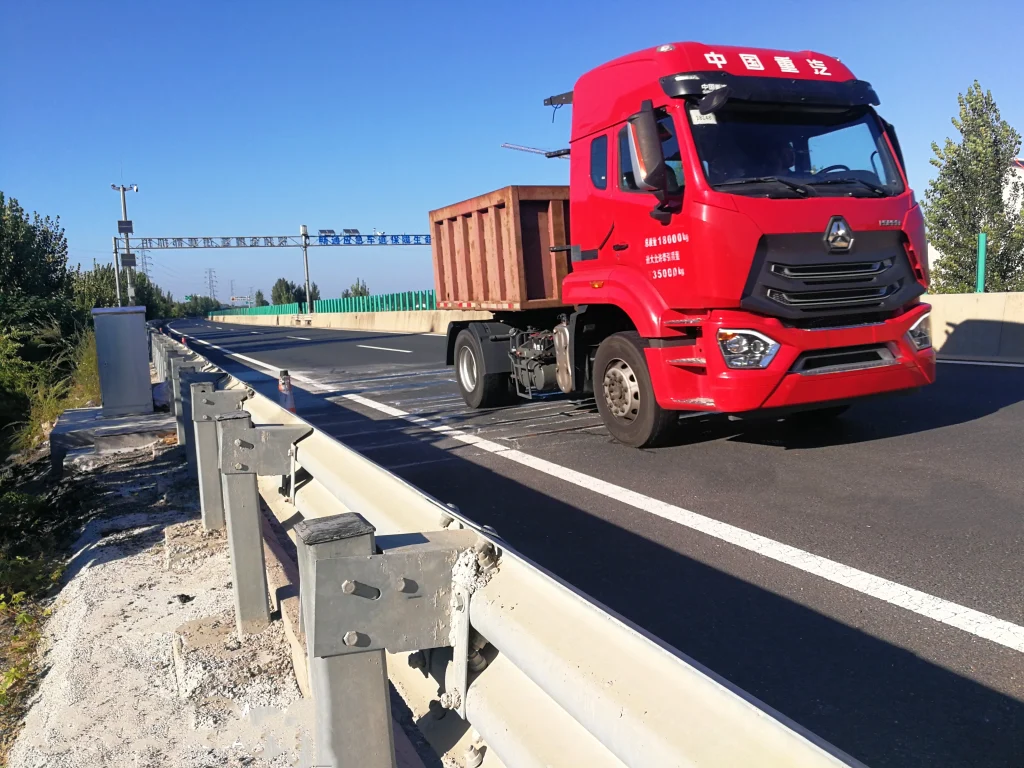

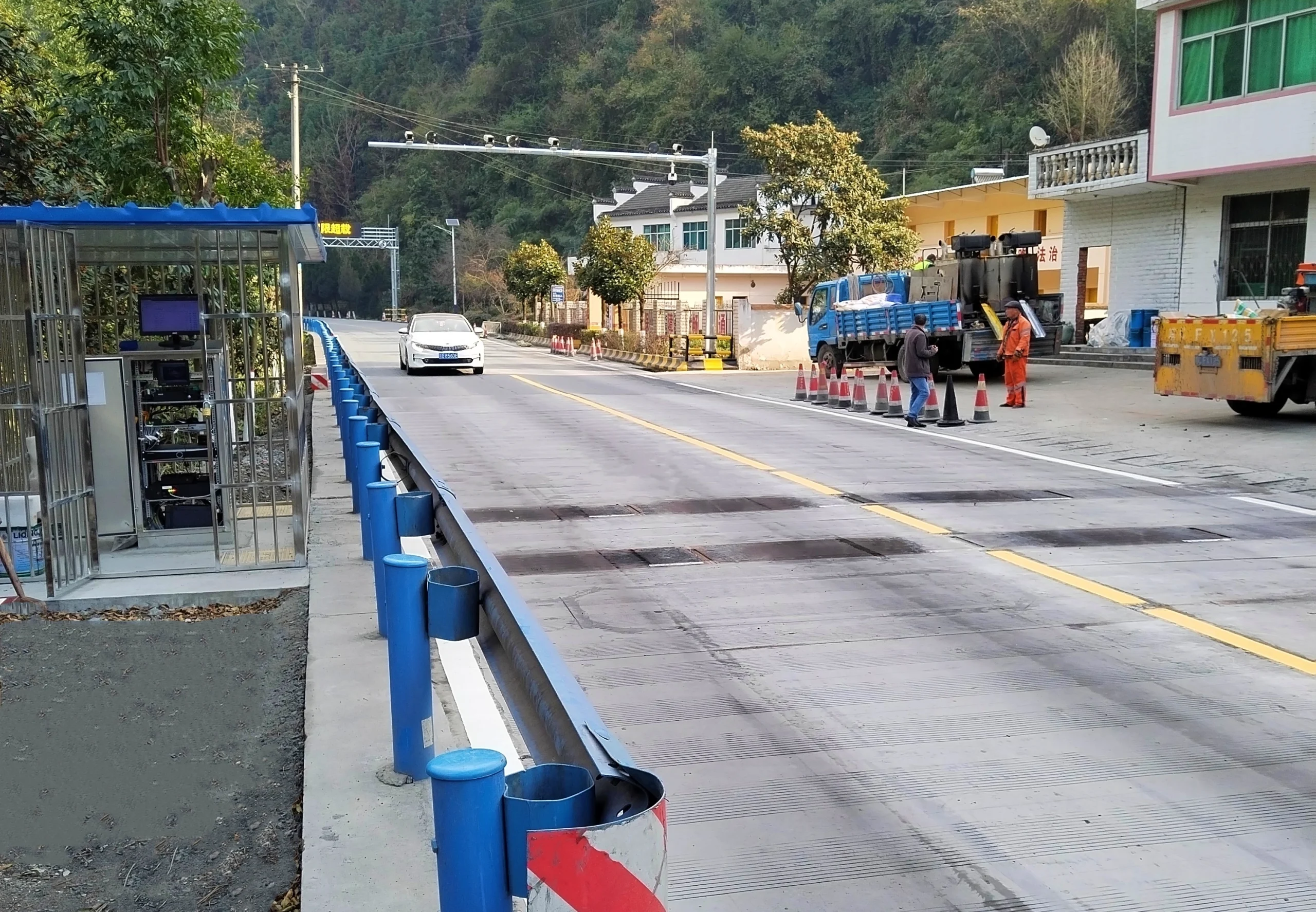

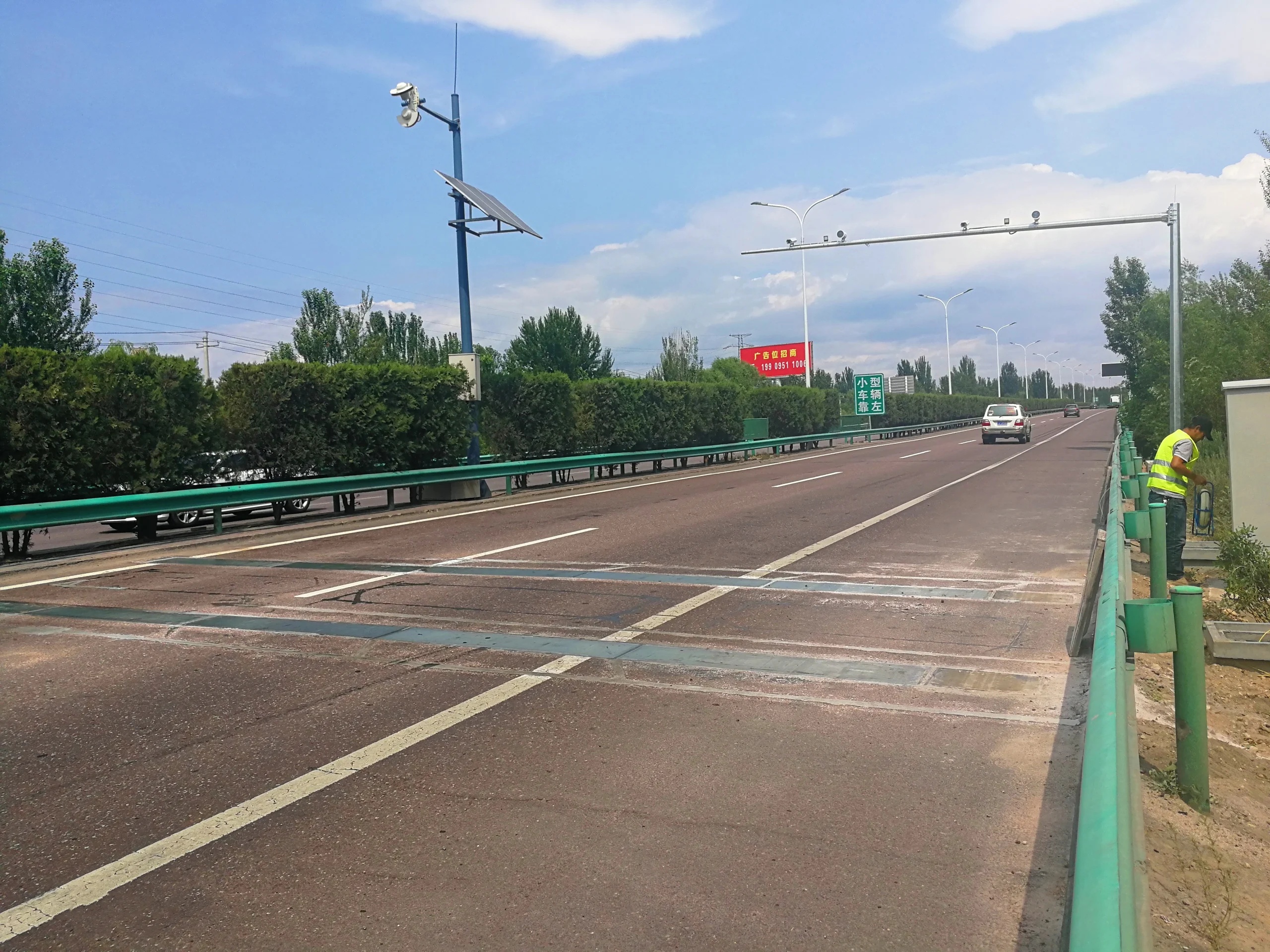

The Bincen flat panel dynamic weighing system is a cutting-edge solution designed for precise vehicle weighing on the move. Composed of a dynamic weighing sensor, weighing instrument, vehicle detector, and field cabinet, this system offers a compact and cost-effective approach to dynamic weighing. Customizable weighing sensor lengths accommodate various road widths, while the system’s design effectively compensates for lateral forces caused by irregular vehicle movement. Installation is straightforward, requiring no additional structures, making it suitable for diverse road surfaces and even bridge decks. With high precision, low lag, and a dynamic response capable of measuring vehicles at speeds up to 100 km/h, this system delivers exceptional accuracy, even at low speeds. The system is stable and reliable, running automatically for 24 hours.

System Composition of Flat Panel Dynamic Weighing System

  • Dynamic weighing sensor (configure a suitable length of weighing sensor according to the width of the road surface)
  • Dynamic weighing instrument (including weighing software)
  • Vehicle detector (coil)
  • Field cabinet (power distribution, temperature control)

Specification of Flat Panel Dynamic Weighing System

Maximum single axis or axle group loadMax=40t
Minimum single axis or axle group loadMin=1000kg
Graduation value d=50kg
Operating speedV=0-120km/h
Accuracy level of total vehicle weightLevel 5
Accuracy level of single axis load or axis group loadE level
Implementing national standardGB/T21296 Dynamic Highway Vehicle Automatic Scale
Sensitivity (mV/V)1-2
Nonlinearity± 0.2% FS
Repeatability± 0.2% FS
Input resistance (Ω)30-40
Output resistance (Ω)30-40
Insulation resistance≥ 5000M Ω
Power supply voltage10V (DC/AV)
Operating temperature range-40C -+70C
Connecting cablesφ 10 * 6m
Length650mm, 1000mm, 1600mm, 1750mm, 1850mm, 2000mm
Width400mm-450mm
Thickness55mm

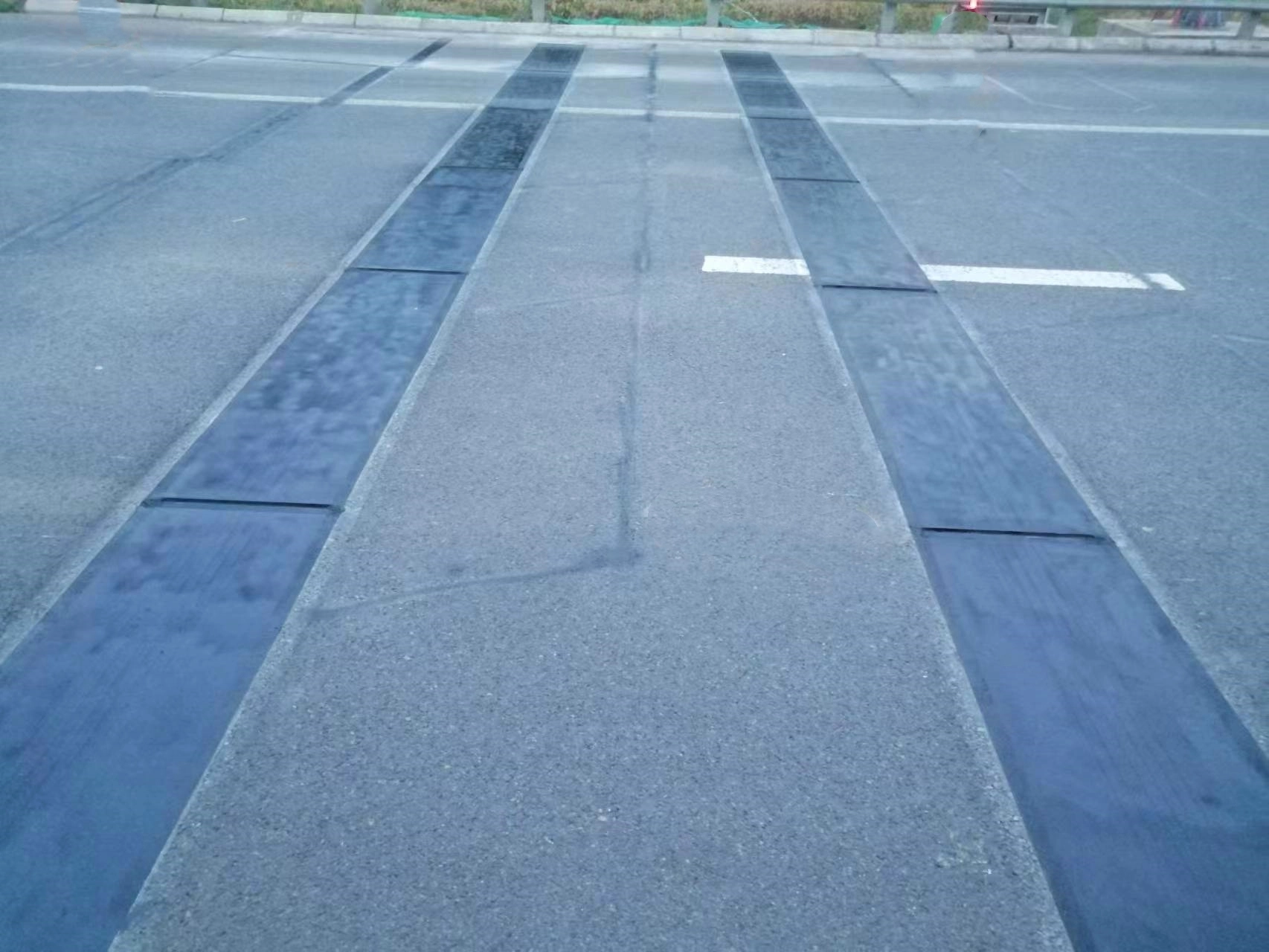

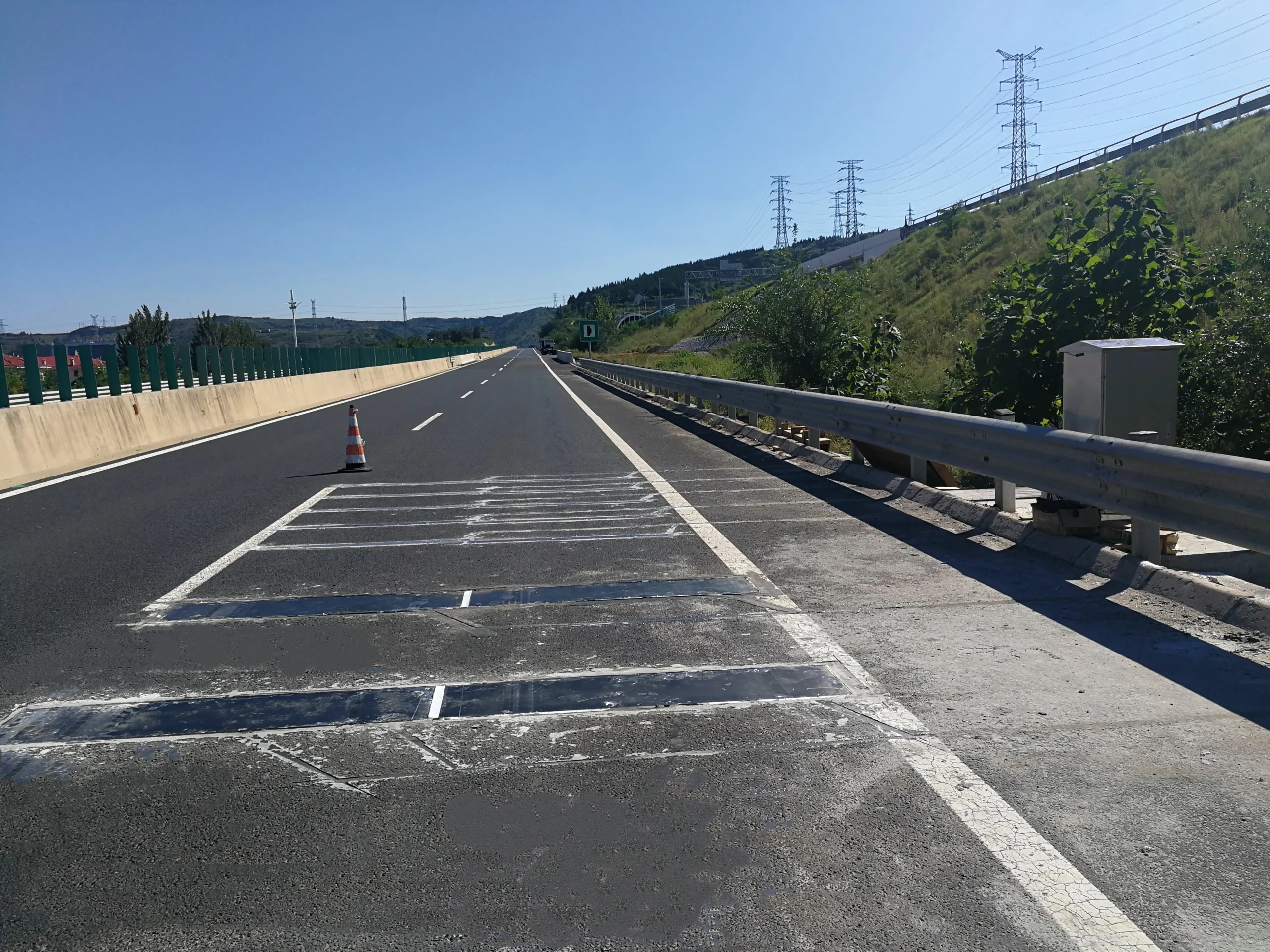

InstallationTypically, 2 pieces are installed per lane, and 2-3 pieces are installed on ultra-wide lanes.
Flat Panel Dynamic Weighing System Connecting cables
Flat Panel Dynamic Weighing System Specifications

Features of Flat Panel Dynamic Weighing System

  • Versatile Weighing: Capable of high-speed, low-speed, and static measurements.
  • Advanced Compensation: Effectively mitigates data disturbances caused by irregular vehicle movement.

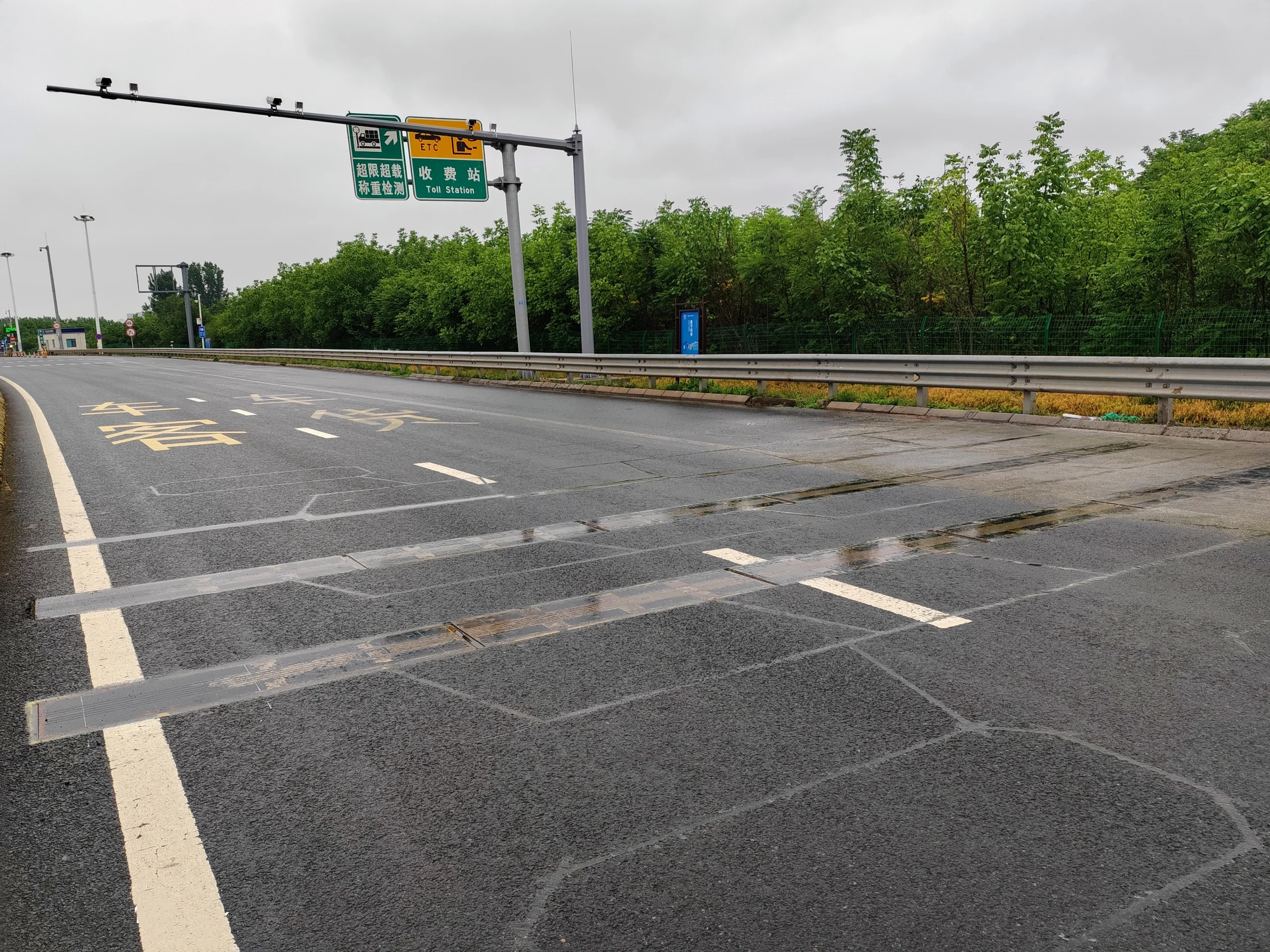

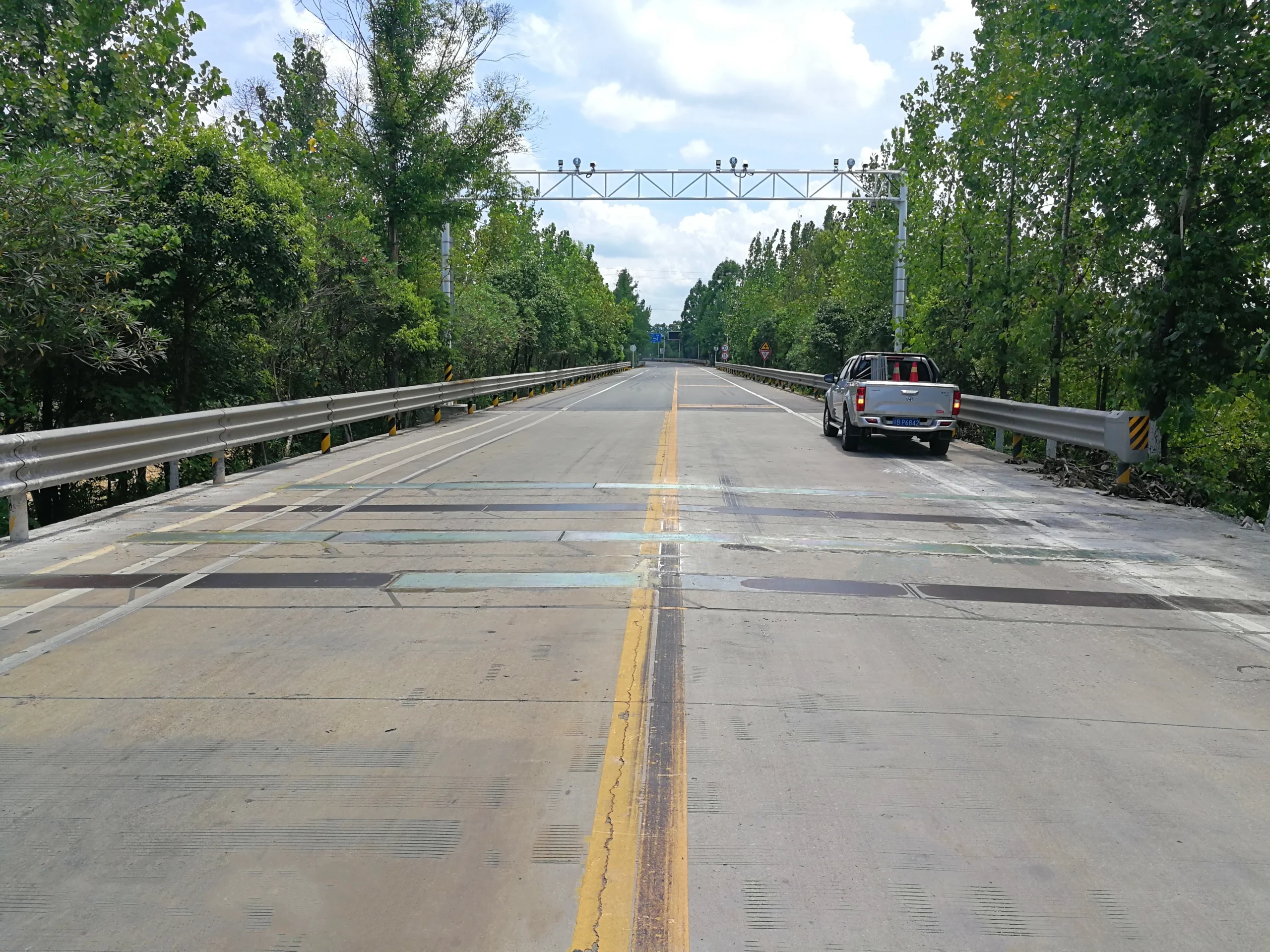

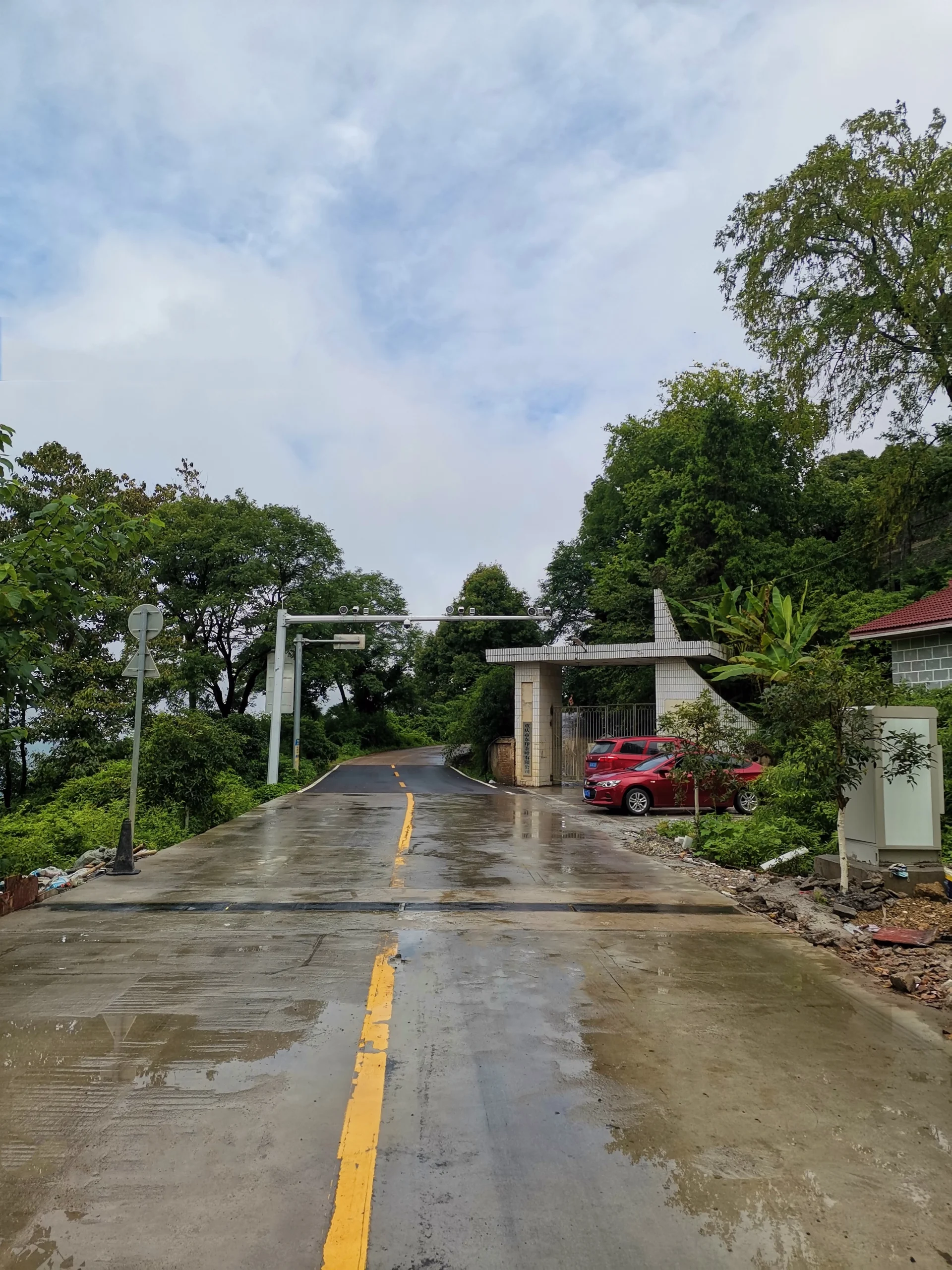

  • Easy Installation: Requires minimal infrastructure, suitable for various road surfaces and bridge decks.
  • High Precision and Responsiveness: Accurate measurements up to 100km/h and dynamic level 2 accuracy at low speeds.
  • Reliable Operation: Continuous 24-hour automated operation.

Function of Flat Panel Dynamic Weighing System

The Flat Panel Dynamic Weighing system operates stably, has a long service life, and high reliability, and is suitable for various road conditions, completing the weighing of vehicles at high and low speeds. Especially suitable for off-site overload control systems, overload pre-inspection, and entrance return systems.

How to Install the Flat Panel Dynamic Weighing System

  1. Complete Technical Service: We provide technical advice, installation guidance, and after-sales support.
  2. Remote Guidance: Due to the lack of a local after-sales service point, we offer online remote guidance for installation.
  3. Detailed Installation Videos: We provide detailed product installation videos to assist with remote guidance.

Note: Please be aware that on-site technical support is not available in your location. We recommend utilizing the provided remote guidance and installation videos for a successful installation process.

Why Choose Us?

Advantage 1: Bincen is a manufacturer engaged in electronic scales, ingredient controllers, instruments and meters, and complete automation equipment! Its products are widely used in supporting construction machinery manufacturers, and the weighing and batching controller has precise algorithms and stable performance.

Advantage 2: We provide international industrial automation control and testing equipment, industrial weighing systems, and sensor equipment and instruments for many well-known large and medium-sized industrial enterprises and aerospace industry enterprises in China. Our technology and products are reliable and trustworthy.

Advantage 3: Senior engineers provide you with comprehensive and comprehensive sales service guidance, pre-sales professional solution design, product selection guidance, in-sales installation and debugging, and after-sales maintenance service guidance.

Advantage 4: If the accessories are damaged during the warranty period, we shall replace them.

FAQ

A1: Yes, we can provide an operation video. You can contact us for more information.

A2: It is 12 months.

A3: One-year warranty, discontinued online remote guidance service.

A4: At present, there are only repair points available in China. If you have repair needs, we will provide online remote guidance.

A5:

  1. Reach purchase intention after communication;
  2. Signing the contract;
  3. Pay deposit;
  4. Pay the balance after completion of production according to order;
  5. Delivery arrangements.
