Explosion Proof Truck Scale

  • Suitable for various explosion-hazardous environments;
  • Accuracy class: ClassⅢ;
  • Analog or digital configuration is optional;
  • Three explosion-proof modes can be used.

What Is Explosion Proof Truck Scale?

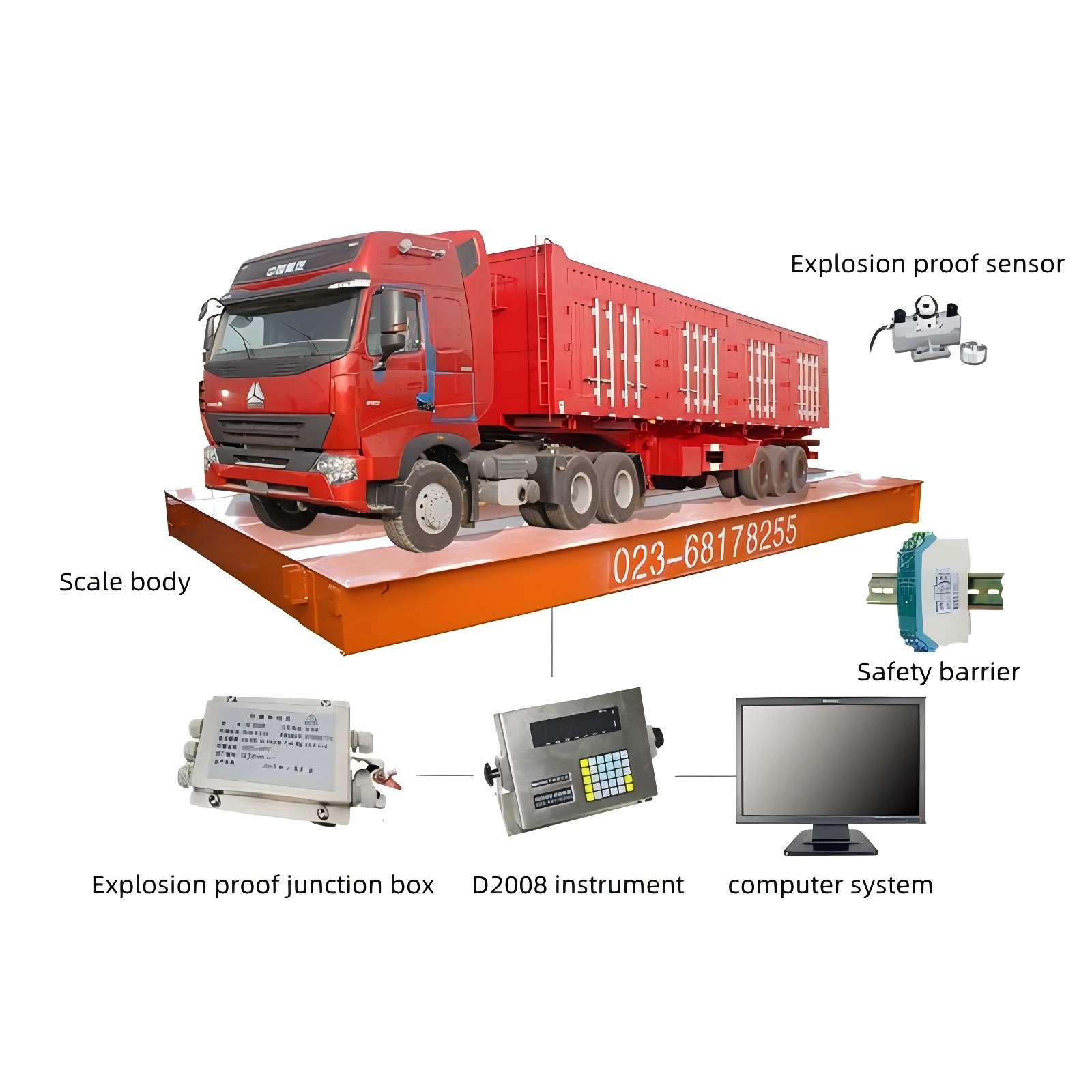

Configuration Introduction

(1)Intrinsically safe explosion-proof instrument

XK3190-Ex-A8
XK3190-Ex-A8
XK3190-A18
XK3190-A18

(2)Explosion proof scale instrument

Explosion proof grade: Ex ib IIC T3/T4 Gb.All stainless steel intrinsically safe explosion-proof instrument, which uses a static weighing system with up to four 3502 sensors, can be used in most explosive gas occasions.

Explosion Proof Truck Scale10
XK3190-Ex-A8
Explosion Proof Truck Scale11
XK3190-A18

In the Explosion Proof Truck Scale, the shell is cast with aluminum alloy, and the outer surface is sprayed with plastic. The whole body is of flameproof chamber type, and the front is equipped with tempered glass window for the observation instrument to display data. The box surface is equipped with control operation keys. The lower part is the cable entry connector.

(3)Non explosion proof instrument

Explosion Proof Truck Scale7
D2008

4)Intrinsically safe load cell

Explosion Proof Small Weighbridge13

5kg~30kg,ExiaIICT6

(5)Other accessories

Explosion Proof Small Weighbridge14

Features of Explosion Proof Truck Scale

Explosion Proof Truck Scale8

The installation position of the sensor and the overlapping position of multiple scales are designed reasonably and ingeniously, and the installation, maintenance and overhaul are convenient. There are transverse rib plates inside the scale body, and the lane has a bottom seal to ensure the long-term stability of the scale accuracy.

The truck scale end is made of thick steel plate with reasonable mechanics and sealed weld; Real materials ensure that the scale body is not easy to deform; The construction process is simple and fast.

Explosion Proof Truck Scale9

Specification of Explosion Proof Truck Scale

weighing10-150 tDimensionsSupport customization
Weighing accuracyClass IIIsupply voltageAC:220V+10%,50HzDC:12V,500mA
Rated power< 20WDivision rate of digital modules120000 yards
Data refresh rate50 times/sNonlinear≤+0.01 %F.S
Operating temperature range– 40℃~ 65℃Repeatability≤+0.005%E.S

In addition to the Explosion Proof Truck Scale, we also provide other Explosion Proof Electronic Scale such as Explosion Proof Small Weighbridge, Explosion Proof Electronic Platform Scale, etc. We provide various kinds of products and custom services for your specific needs.

How to Install the Product

  1. The manufacturer prioritizes a modular product design approach, facilitating efficient system integration. This minimizes the requirement for large cranes during the installation process, resulting in a cost-effective and labor-efficient experience for the customer.
  2. A comprehensive technical service system is offered by the manufacturer to guarantee customer satisfaction. This system encompasses technical consultation, installation guidance, and after-sales service. Please note that on-site service is unavailable in your location. However, detailed product installation video resources are provided for remote support.

Related Services

  • Elevant Certification: CE.
  • Services Available: Customized, ODM and OEM.
  • If accessories get damaged during the warranty period, just give us a call and we’ll send you a replacement.

Why Choose Us?

  • BINCEN specializes in manufacturing electronic scales, ingredient controllers, instruments, and complete automation equipment. Our products find extensive application in supporting construction machinery manufacturers. Our weighing and batching controller features precise algorithms and consistent performance.
  • We have more than 20 years of experience in the production, R&D, and sales of weighing instruments, and we are still developing and innovating. We supply international industrial automation control and testing equipment, industrial weighing systems, and sensor equipment and instruments to numerous renowned large and medium-sized industrial enterprises and aerospace industry entities in China. Our technology and products are esteemed for their reliability and credibility.
  • Our seasoned engineers offer comprehensive sales support, including pre-sales solution design by professionals, product selection guidance, installation, and debugging during the sales process, as well as after-sales maintenance service guidance.

FAQ

A1:

  • Spot products and goods will be delivered within 15 days after receiving the deposit or full payment.
  • Customized products shall be delivered within 30-45 days after receiving the deposit.
  • Payment before delivery.

A2: 15 days from quotation date.

A3: One-year warranty, discontinued online remote guidance service.

A4: Always a pre-production sample before mass production; Always final Inspection before shipment.

A5: Provide your email, phone number, Whatsapp, and other contact information to facilitate our sales personnel to communicate with you in the future; We also need to provide the specifications of the products you require, such as size, maximum weight, etc., so that we can provide you with a faster quotation.
