120 Ton Weighbridge
The 120 ton weighbridge is suitable for weighing and measuring bulk cargo vehicles in ports, docks, airports, mines, metallurgy, materials, warehouses, and factories, including the rear eight wheels, front four rear eight (with a length of 9.6 meters), semi-trailers, and trailers. It simulates the A/D conversion of sensor output signals, and the signal from the junction box to the instrument is digital, thereby reducing remote control cheating; It has strong anti-interference ability, more stable use, and very convenient maintenance.
What Is 120 Ton Weighbridge?
Product performance, materials, and processes:
Product accessory list:
Accessory Name | Specification | Brand |
Weighing sensor | 30t,40tDigital or analog Protection level: IP68,IP69 | ZEMIC/KELL/Celtron/UTICLELL |
Weighing instrument | Standard configuration: 1. RS232/RS485 adaptive; 2. RS232◆ Power supply: AC187-242V; 3. 49-51HZ◆ DC power supply: powered by an external 12V battery | YaoHua\KELL\Celtron\UTICLELL |
Junction box | 30t,40tDigital or analog protection level: IP68,IP69 | Remodeled by BINCEN |
Scale body limit | The four corner limits of each scale section | Supporting facilities of BINCEN |
Lightning protection grounding flexible copper wire | Reduce damage to sensors caused by induced lightning strikes | Supporting facilities of BINCEN |
Optional configuration | Computers, printers, weighing management software, unmanned weighing systems, weighing systems with license plate recognition | BINCEN |
(1) Sensors
The weighing sensor of the 120-ton Weighbridge is the core component of the weighing scale, which functions to convert weight values into corresponding measurable electrical signals.
(2) Weighing instrument
Also known as a weighing display controller, it is used to measure the electrical signals transmitted by sensors, and then process and display weight readings through specialized software. The data can be further transmitted to printers, large-screen displays, and computer management systems.
(3) Accessories
Printer: used to print weight data forms
- Large screen display: used for displaying weight and other data at long distances and magnifications.
- Weighing management software: used for further processing, storage, transmission, etc. of weight data.
- The weighing management system consists of weighing software, a computer, a printer, and data line instruments.
Features of 120 Ton Weighbridge
120-ton Weighbridge is high precision, long service life, corrosion resistance, stable structure, accurate positioning, no deformation, maintenance free, suitable for industries such as public weighing stations, chemical enterprises, port terminals, and refrigeration industries that require high anti-corrosion functions.
- Lightning protection: It can reduce the damage to sensors, weighing displays, and junction boxes caused by lightning strikes for customers.
- Strong corrosion resistance: suitable for chemical erosion, especially in damp coastal areas.
- Rust prevention and maintenance free: moisture resistance and oxidation resistance
- Long service life: The material has good rigidity, wear resistance, and pressure resistance.
- Good quality stability: no tilting, small swinging, no deformation, good accuracy and stability.
- Modular production makes lifting convenient and flexible.
Specification of 120 Ton Weighbridge

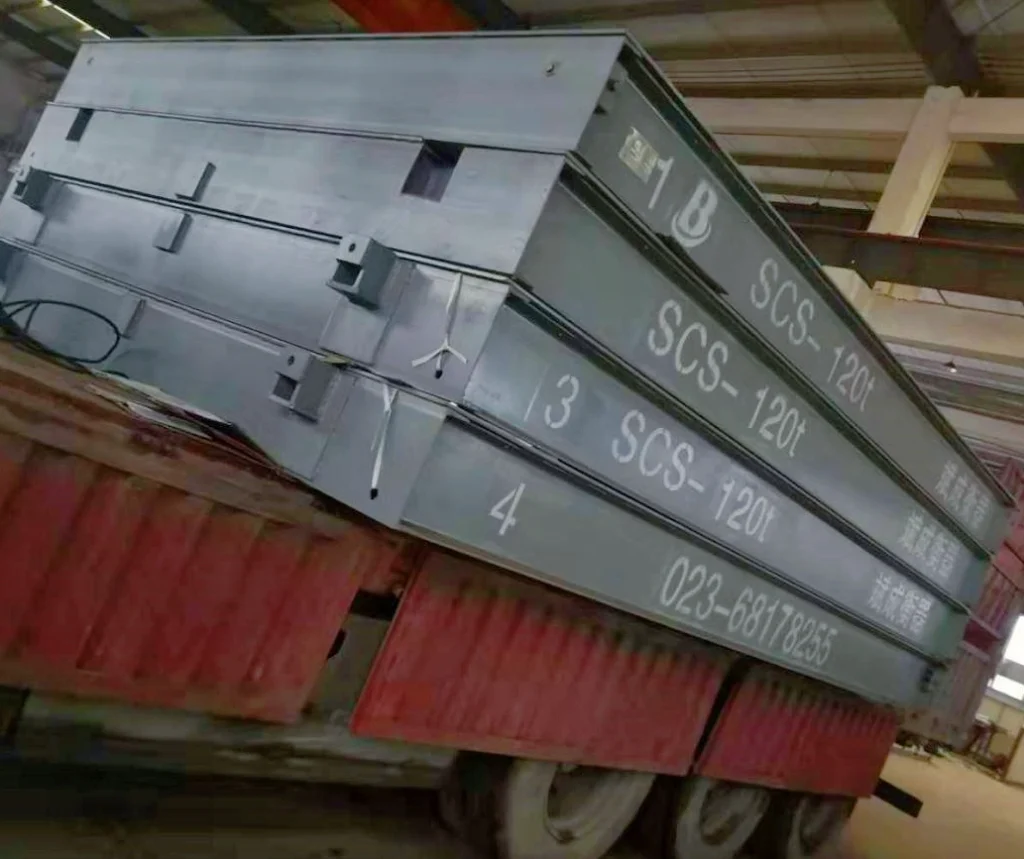

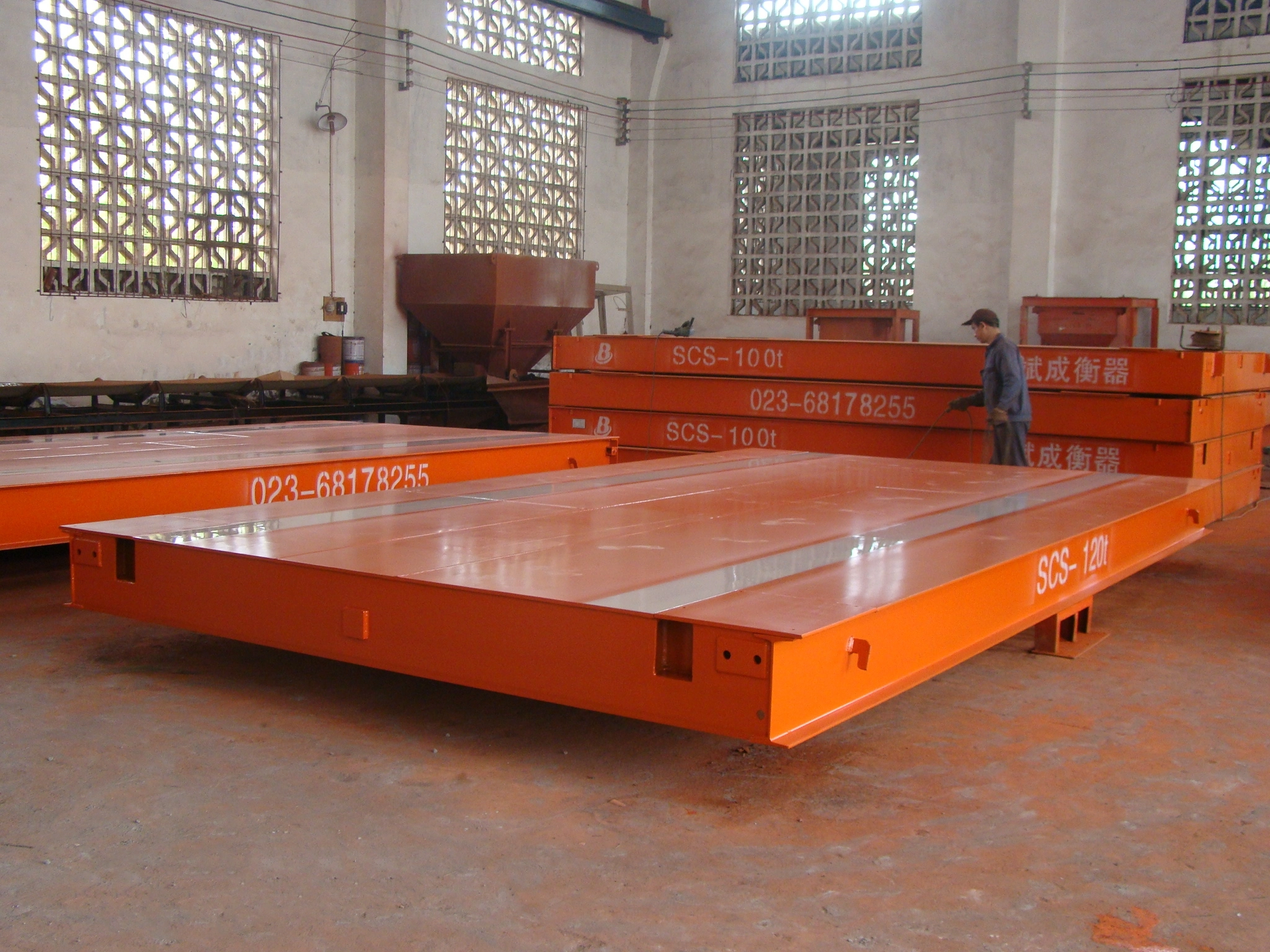

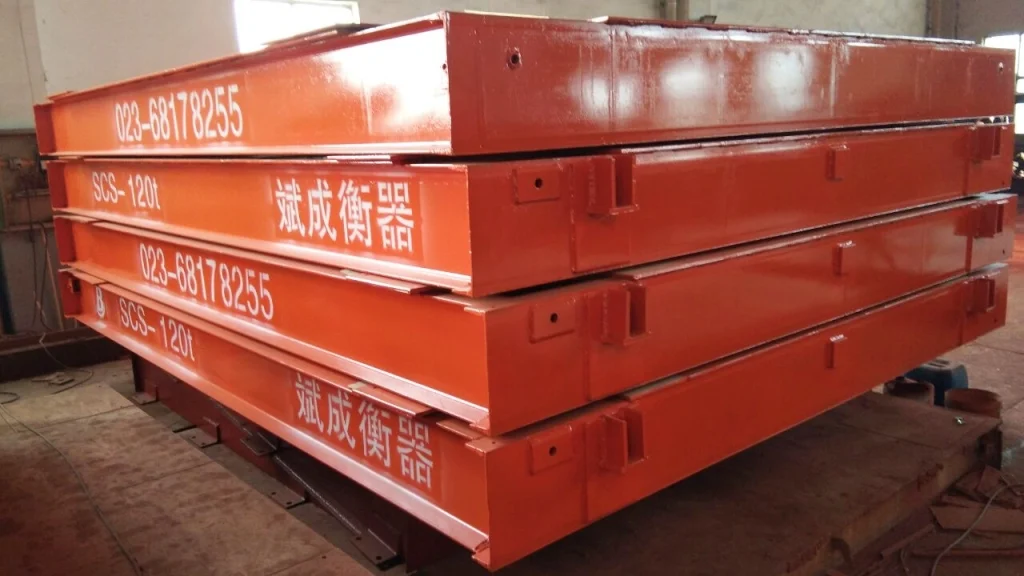

Basic technical parameters of SCS-120t weighbridge
Length options | 12m、14m、16m、18m、20m、22m、24m |
Width options | 3m、3.2m、3.4m |
Maximum weighing capacity | Max=120t |
Accuracy level | Accuracy level: OIML III; Graduation value: d=20kg, e=50kg |
Verification standards | Digital scale JJG539-2016 |
Scale body structure | All steel structure, stiffness: 1/1000F S |
Safety overload | 125%F.S. |
Installation method | Shallow foundation pit or no foundation pit, steel slope can be customized |
Power supply | AC220V (-15~+10%),50Hz±2% |
Scale platform | Composed of 3 or more weighing platforms |
* Various special specifications of weighing scales can be customized according to customer requirements
How to Install the Product
- The manufacturer designs modular products, and system integration, and does not require large cranes during installation, saving installation costs and labor.
- The manufacturer has a complete technical service system to provide customers with technical advice, installation guidance, and after-sales service. Note: Our store does not have an after-sales service point in your location and can only provide online remote guidance for installation. Detailed product installation video materials are available for remote guidance.
Related Services
- Elevant Certification: CE.
- Services Available: Customized, ODM and OEM.
- If the accessories are damaged during the warranty period, the manufacturer shall replace them.
What We Can Offer You Is Not Limited to the Following Services
1. Basic construction guidance
2. Remote guidance installation, remote weighing software debugging, and remote diagnosis of car scale faults can efficiently help customers identify fault points and simplify maintenance procedures
3. Randomly gifted toolbox
4. Plug in voltage regulator
