What is a Screw Feeder? All You Need to Know
In automated material handling and batching systems, the screw feeder is a critical item. It conveys powdered or granular material from a hopper to downstream processes with continuity and accuracy via a rotating screw device.
Screw feeders are used widely in applications such as chemical, construction, food, pharmaceutical, and battery manufacturing. In this article, we shall give a comprehensive description of what is a screw feeder and recommend reliable one.
Part 1. What is a Screw Feeder?
A screw feeder is mechanical equipment with special purpose to feed powdered or granular products with precision and control. Its primary component is a rotating helical blade (commonly referred to as a screw or an auger), driven by a motor, that constantly conveys product from storage bins such as hoppers or silos to the next stage of a process.
Compared to a typical screw conveyor, a screw feeder focuses more on flow control and accuracy of metering measurement rather than simple transportation. It is thus widely used in cases where material dosing must be tightly controlled—such as chemical batching, food additive ratio proportioning, battery slurry make-up, and pharmaceutical powder mixing.
Some of the key features and operations of a screw feeder are:
- Accurate metering: Delivers a uniform and consistent rate of discharge per unit of time;
- Periodic or continuous feeding: Fulfilling the time demands of different processing operations;
- Precise fine adjustment: Achieved through variable frequency drives (VFD), weighing systems, or closed-loop control systems.

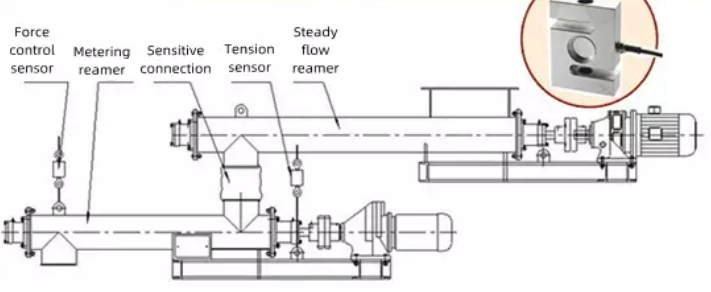

Part 2. How Does Screw Feeder Works?
A screw feeder operates by rotating a helical shaft (screw) to convey material along the axis of the screw in a continuous and controlled manner. In having a small capacity and stable operation, it is optimally suited for incorporation into systems requiring precise flow control in limited space.
Typically, a screw feeder consists of the following major components:
- Hopper: Situated on or as part of the feeder, the hopper stores bulk powder or granular material in a temporary holding pattern to ensure a steady supply.
- Screw Shaft (Auger): The rotating central moving part driven by a motor with a helical form producing thrust to drive material forward during rotation.
- Drive Unit: Normally variable speed motor or gear motor with capacity to change the speed. The rotational speed of the screw can be controlled according to process requirements.
- Casing (Tube or Housing): Terminates the screw shaft for preventing leakage of the material. In some designs, casing may also include features like dust-proof seal, thermal insulation, or heating for particular application.
- Discharge Outlet: Located at the unit’s far end, this is where the material discharges out of the unit. It can be built to be side discharge or vertical depending on process layout.
Operating, the motor turns the screw shaft with the motor pushing the material from the inlet side to the discharge outlet. This action can be constant or variable speed depending on what feeding accuracy the application requires.

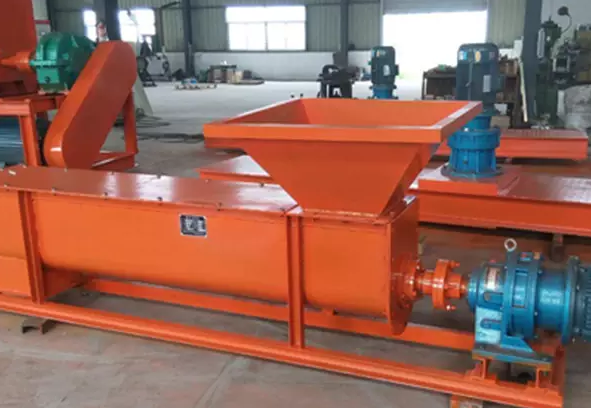

Part 3. Types of Screw Feeders
There are various types of screw feeders that fulfill specific requirements with respect to material characteristics, accuracy of dosing, and operating conditions. Based on structural design and metering principles, screw feeders can broadly be categorized as follows:
1. Volumetric Screw Feeder
A volumetric screw feeder delivers a reproducible volume of material within a specified period by sustaining the speed and form of the screw. The screw feeder doesn’t consist of real-time feedback from weighing equipment but relies on repetitive material characteristics for correct feeding.
Key Features:
- Applicable for free-flowing, uniform bulk materials such as flour, plastic pellets, or dry powders;
- Basic design with lower expense and little maintenance;
- Best suited for applications where dosing accuracy is not a high priority and material bulk density is not variable.
2. Gravimetric Screw Feeder
Gravimetric screw feeders are equipped with precisely accurate load cells or weighing sensors such that the system can track the actual weight of material discharged at all times. The feeder dynamically controls the speed of the screw in order to achieve closed-loop control to enable highly accurate dosing.
Key Features:
- Real-time feedback and automatic control to provide precise and consistent feeding;
- Capable of feeding continuously or in batches with very high precision;
- Normally used in processes such as pharma, fine chemicals, battery raw materials, and other processes that require close formulation.
3. Single Screw and Twin Screw Feeders
Single Screw Feeders: Suitable for feeds with acceptable flowability, such as dry powder or granules. Single Screw feeders are power-sipping and thus cost-effective, and they are commonly used for the general-purpose dosing operation.
Twin Screw Feeders: Comprise two intermeshing or parallel screws rotated in the same direction. Especially suitable for poor-flowing, sticky, cohesive, or bridge-building material like carbon black, wet powders, or viscous additives.
Comparison:
Twin screw feeders enhance flow uniformity and self-cleaning with reduced clogging or bridging of material;
Available as co-rotating or counter-rotating design depending upon material characteristics and desired mixing or feeding operation.
4. Specialized and Custom Screw Feeders
To meet specific operating needs of individual units, screw feeders may also be developed with varying characteristics and materials of construction:
- Corrosion-proof models: Fabricated from 304 or 316 stainless steel, for handling corrosive or chemically reactive material;
- High-heat designs: For the processing of material at elevated temperatures or in heat-sensitive processes;
- Sealed or explosion-proof designs: For hazardous service, such as dust-sensitive or combustible applications (e.g., pharmaceutical or petrochemical plants);
- Additional features: In addition, the features may involve built-in cleaning systems, heating/cooling jackets, quick-release devices, or in-line weighing systems for enhanced process efficiency, hygiene, and safety.

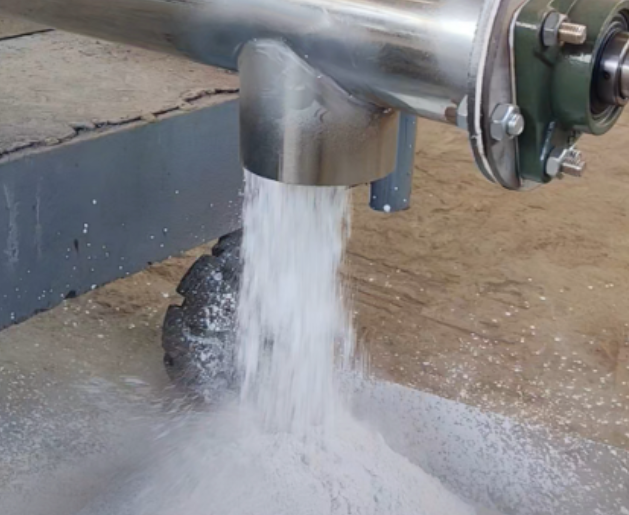

Part 4. Main Applications of Screw Feeders
Screw feeders are used across the board in powder and granular product handling, dosing, and conveying industries. Because they have a compact design, stable operation, and precise metering, screw feeders are essential components of batch as well as continuous processing systems.
The major industries wherein screw feeders play an important role are as follows:
1. Chemical Industry
Screw feeders are widely utilized in chemical processing to dose materials such as calcium carbonate, zinc oxide, sodium hydroxide and polymer powders into reactors, mixers or production lines.
As these materials tend to be corrosive or moisture sensitive in nature, sealed designs or stainless steel construction is typically utilized for reliable operation under extreme circumstances.
2. Food Industry
In food processing, precise dosing of ingredients is vital to product quality and consistency. Screw feeders allow for accurate dosing of sugar, salt, starch, protein powder, flavorings, milk powder and other food-grade powders such as sugar.
They’re designed with hygiene in mind, with twin-screw varieties commonly being employed to prevent any clogging while processing sticky materials such as sticky glues.
3. Building Materials Industry
In cement plants, dry mortar lines, and batching stations for concrete, screw feeders are used to transport cement, lime powder, fly ash, bentonite, and similar inorganic powders.
They offer products that are generally abrasive and heavy, thus requiring screw feeders that have high wear resistance and robust construction to provide extended service life and consistent output.
4. Pharmaceutical Industry
The pharmaceutical sector demands high precision, cleanliness, and traceability. Screw feeders utilized in these applications are built from stainless steel that is polished to a high finish with sanitary layouts, ensuring dust-free, hygienic, and precise feeding of pharmaceutical powders and additives.
Simple disassembly and cleaning are also essential characteristics to be in compliance with GMP and FDA standards.
5. Lithium Battery Industry
Lithium battery production involves precise dosing of valuable and sensitive materials such as metal oxides, electrolytic powders, conductive carbon black, and lithium iron phosphate. Screw feeders offer precise, sealed, and reproducible feeding with low material loss and contamination to improve highly automated production systems.
6. Environmental Protection Industry
Screw feeders are commonly utilized in natural processes like flue gas desulfurization and wastewater treatment to distribute activated carbon, lime powder, coagulants, and dry desulfurizing agents that have unique characteristics such as unidirectional flowability or hygroscopicity, thus necessitating reliable sealing, anti-bridging functions and positive dosing controls to keep powder flowing smoothly and provide positive dosing control.
Screw feeders offer flexible configurations and customized options that make them adaptable to nearly every industrial application. From accurate batching, high-rate material transfer or conveying stubborn powders – screw feeders offer an effective and dependable solution in many industries.
Part 5. How Can I Choose a Screw Feeder?
Selecting an optimal screw feeder for your specific operating conditions is key to maintaining efficient production and precise material handling. As different materials and environments place different demands on its design and operation, it is necessary to carefully evaluate these key aspects during your selection process:
| Factor | Description |
| Material Properties | Get to know the particle size, bulk density, sensitivity to moisture, clumping tendency, and flowability of the material. Free-flow materials can use standard screws, while gluey or wet materials will require specialty designs such as twin screws or anti-stick designs. |
| Feed Accuracy | Choose if precise weight feedback control is necessary. For high-accuracy dosing needs, use gravimetric screw feeders with load cells; volumetric feeders can be used for general conveying or coarse metering. |
| Flow Rate Range | Evaluate the required maximum and minimum conveying capacity, usually in kilograms per hour (kg/h) or liters per hour (L/h). The chosen feeder should be able to run stably and adapt flexibly within this flow range. |
| Operating Conditions | Consider if special characteristics are required, such as sealed construction to confine dust leakage, explosion-proof design for hazardous areas, chemical processing corrosion-resistant materials, or high-temperature operation for hot materials. |
| Control System Compatibility | Decide if compatibility with existing automation systems like PLC or DCS is required for remote operation, speed control, and intelligent control. Present feeders usually consist of several control protocols to support easy integration into higher-level systems. |
Summary Recommendations
- Carefully review the material characteristics and process requirements to choose the proper feeder structure (single or twin screw), material, and special features;
- Specify dosing accuracy needs to decide between volumetric or gravimetric screw feeders, complying with process standards;
- Calculate the conveying capacity range needed to avoid overloading or underloading because of constant speed changes;
- Select protective features and materials suitable for application in operating conditions and safety standards;
- Consider automation integration needs by choosing the convenience of controlling and maintaining equipment to enable intelligent production management.

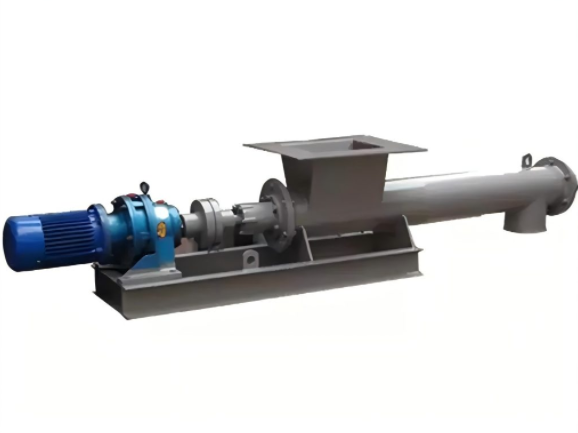

Part 6. Best Screw Feeder Recommendation – Bincen Screw Feeder
Being a professional screw feeder manufacturer, Bincen specializes in offering high-precision and high-performance powder metering machines. Our screw feeders are designed particularly for powder dosing and widely used in mining, construction, chemical, and food processing industries.
With the benefit of leading-edge variable-pitch screw shaft technology and corrosion- and wear-resistant materials, Bincen screw feeders offer stable and efficient material conveying.
The key characteristics of Bincen screw feeders are:
- High-Precision Metering: Static system accuracy of up to ±0.5%, dynamic accuracy retained at ±1–3%, for guaranteed and precise dosing.
- Modular Design: Flexible structure with flexibility to suit conveyors of varying widths, allowing easy configuration and mounting to meet customer specifications.
- Superb Sealing Performance: Material leakage and air ingress prevented and operating environment maintained clean.
- Anti-Clogging Design: Specially designed screw geometry keeps material clogging to a minimum and provides stable, uninterrupted feeding.
- Sticky Material Conveying: Shaftless screw design is especially well-suited for conveying viscous materials, preventing winding and tangling.
- Wear Life: Durable thickened screw blades constructed of highly wear-resistant and corrosion-resistant materials ensure extended service life.
Final Words
Being a safe and effective quantitative feeding equipment, the screw feeder has evolved to be a key component in industrial automation. Whether you are faced with constant manufacturing, precise dosing, or harsh conditions such as high corrosion and demanding cleanliness requirements, choosing an appropriate screw feeder will significantly improve your manufacturing efficiency and quality control.
If you are looking for professional screw feeder solutions, welcome to contact Bincen. Bincen’s expert technology will help take your production to the next level.
