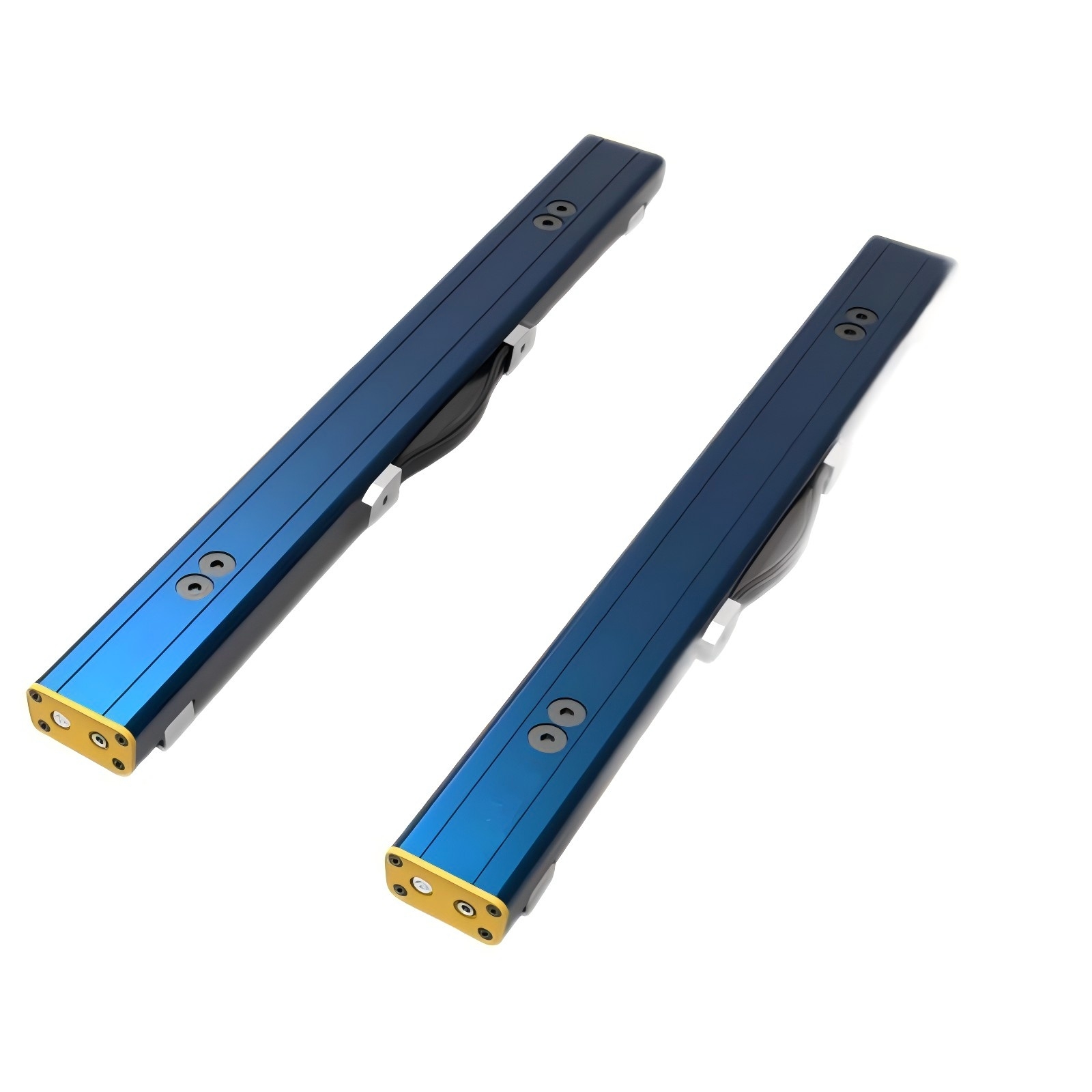

Portable Weighing Bar

Portable weighing rods that can be connected via Bluetooth can be used to complete on-site weighing, billing, printing, recording, invoicing, weighing data sharing and export through an intelligent APP, solving the problem of real-time weighing of heavy goods in express logistics scenarios.

What Is Portable Weighing Bar?

System Composition

  1. Two weighing bars (standard)
  2. Exclusive mobile phone smart APP (customized according to customer requirements)
  3. Several other accessories (sensors, etc., please consult customer service for details)
  4. Smartphone (optional) (need to take another picture)
Smartphone (optional)

Equipped With L6F Sensor

Equipped with L6F sensor
  • The L6F load cell can meet the accurate weighing within the range of 50kg – 2000kg.
  • Silicone rubber seal, anodized surface, good corrosion resistance.
  • It applies to electronic pricing scales, electronic platform scales, and other electronic weighing equipment.
  • OIML certification, certificate No.: R60/2000-CN1-06.01.

In addition to the Portable Weighing Bar, we also provide other industrial weighing products such as weighbridge, belt scale, Axle Load Scale, etc. BINCEN is committed to providing the best products and services for our customers!

Features of Portable Weighing Bar

Product Features

1. Large measuring range and flexible use

Each weighing bar has a measuring range of 1500kg. The normal use of two weighing bars can reach the weighing standard of 3t, basically meeting the weighing requirements of general products.

2. One piece, sturdy and durable

The integrated tensile aluminum alloy material is lighter and stronger than the all-steel structure. It can maintain accurate weighing under severe conditions.

  • Strong endurance
  • High strength
  • Lightweight
  • Accuracy

3. Bluetooth connection, self-service printing

This product supports the mobile phone wireless Bluetooth function, helping users meet their weighing needs, but also giving users some correct feedback, so that users can fill in a satisfactory questionnaire in their mind.

4. Equipped with multi-functional mobile phone APP

Multiple and simple functions: data statistics, photo recording, data export, Bluetooth printing, automatic accumulation, data reset.

Portable Weighing Bar Comparison With Traditional Scale

Comparison with traditional scale

Product Advantage of Portable Weighing Bar

Product advantage
Product advantage 2

Specification of Portable Weighing Bar

Product modelD1D2D3
Product size80cm*8cm*5.5cm100cm*8cm*5.5cm80cm*7cm*2.5cm
The dead weight of the product1.5t/ piece1.5t/piece0.5t/piece
The dead weight of the product5kg/ piece5. 8kg/ piece1.55kg/ piece
Sensor materialHigh-strength alloy steelHigh-strength aluminum alloyHigh strength aluminum alloy
Working power supply3.7V lithium battery 9000mAh3.7V lithium battery 9000mAh3.7V lithium battery 1500mAh
Measurement error1%1%1%
Work endurance100h100h12h
High-strength alloy steel6h6h6h
Graduation value1. 2, 5, 10, 20kg, etc. can be customized
Maximum weight3000kg
Power supplyDC4.2V lithium battery
Communication modeBluetooth
Operation modeAndroid Mobile Smart APP
Main functionsWeighing, billing, printing, recording, billing, weighing data

How to Install the Product

  1. Our modular design and pre-integrated systems eliminate the need for heavy machinery during installation, saving you time and money.
  2. We offer comprehensive technical support, including installation guidance and after-sales service. Please note that on-site service is not available in your area, but we provide detailed video tutorials and remote assistance for installation.

Related Services

  • Elevant Certification: CE.
  • Services Available: Customized, ODM and OEM.
  • We stand behind our products. If any accessories are damaged during the warranty period, we’ll replace them at no charge.

Why Choose Us?

  • BINCEN specializes in manufacturing electronic scales, ingredient controllers, instrumentation, and complete automation systems. Our products find extensive application in supporting construction machinery manufacturers. Our weighing and batching controllers feature precise algorithms and consistent performance.
  • We cater to numerous renowned large and medium-sized industrial enterprises and aerospace industry firms in China, offering international-grade industrial automation control and testing equipment, industrial weighing systems, and sensor instruments. Our technology and products are renowned for their reliability and credibility.
  • Our seasoned engineers offer comprehensive sales support services, including professional pre-sales solution design, product selection advice, on-site installation and debugging during sales, and post-sales maintenance guidance.

FAQ

A1:

  • Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES.
  • Accepted Payment Currency: USD, EUR, CNY.
  • Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow.
  • Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, Korean.

A2: The scale is naked. Accessories are packed in cartons or wooden boxes.

A3: FOB or CIF. The whole set is usually packed in containers and shipped by sea. Accessories are usually shipped by air or express.

A4: Yes, you can customize your LOGO on the product.

A5: Yes, please contact us for more information.
